Titan Mini, MCS Mantis Bottom Bracket.

So I have a Titan 24 and my kid wanted a matching one. So i bought an almost complete off a member here and that's when the fun started!
It had everything but the bottom bracket. I had no idea that the bottom bracket was unique and not a standard size. I couldn't find one anywhere for sale, and there was not much info out there to help.

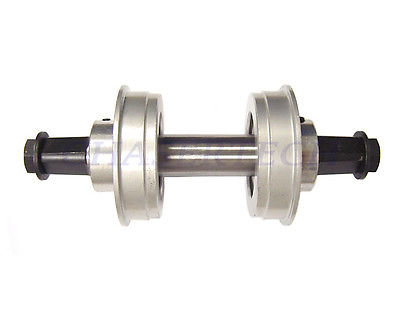

So here is what i did...First i bought a YST bottom Bracket with locking collars. $35
https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/168858/yst-bb564ba5080b.jpg

I couldn't use the bearing and cups and had to find smaller bearings that fit the 17mm inner diameter of the YST spindle and the outer diameter of the frame Bottom Bracket. I bought regular steel bearings on amazon for about $4 each. Size 6003-2RS (http://smile.amazon.com/gp/product/B008 … ge_o03_s00) You can get ceramic in this size if needed.

https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/168858/20151117_1410131564ba6a01f.jpg

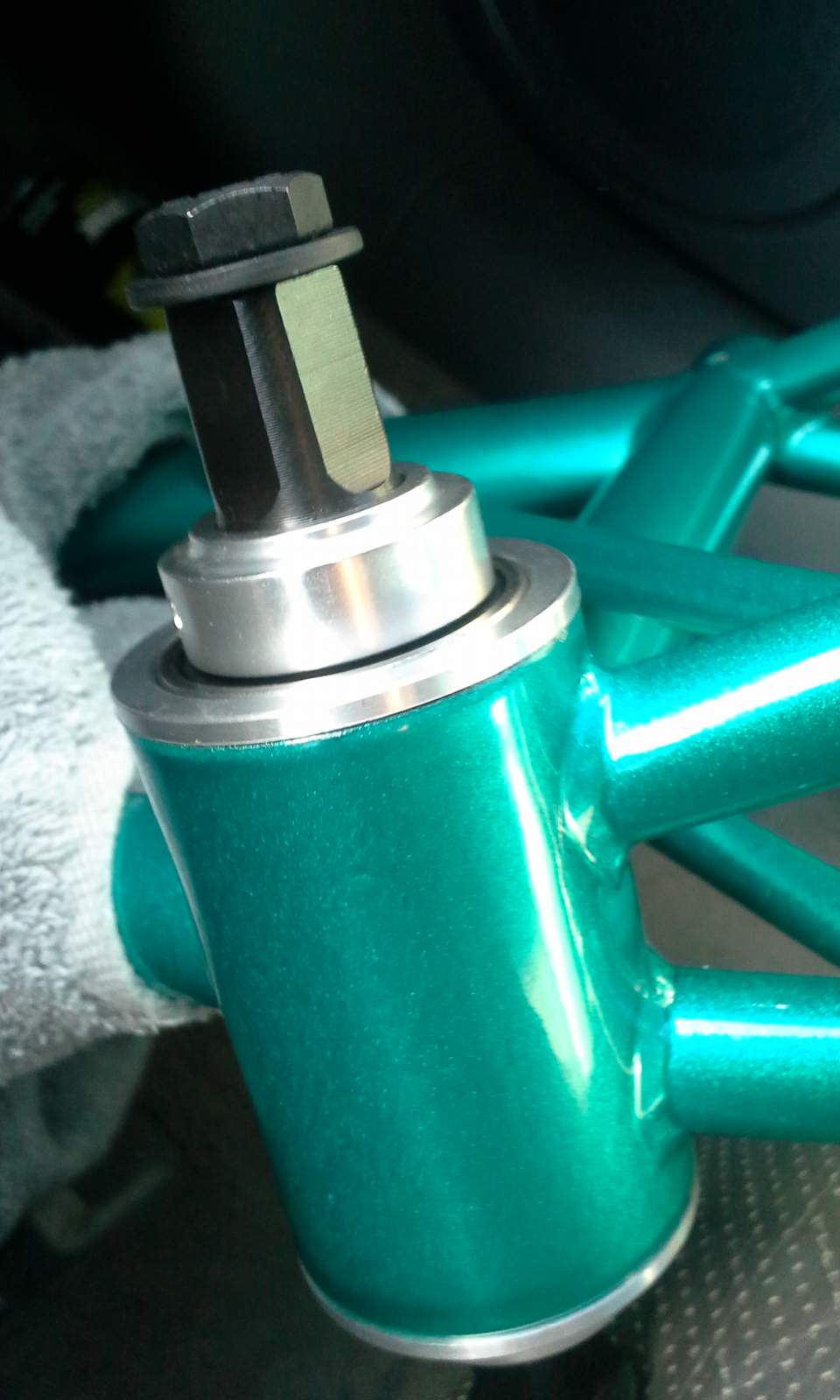

Finally i went to a local machine shop and had the Cups made. I though this is where i would fork out a bunch of dough, but turns out he only charged me $40 for a set. Not bad considering they are 1 off custom made cups. this is the final result...
https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/168858/20151117_1329241564ba7ed60.jpg

Hope this helps! If you have any questions, just PM me.

Thanks - Potato

Last edited by Potato49 (2015-11-17 2:21pm)

Just race!

Offline



#2 2015-11-17 3:00pm

BRICKOS2
Pro MemberTHIRSTY
From: The Dam
Signed up: 2013-07-14
Posts: 15786
Bikes: 45
For Sale: 8
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

What cranks are you planning to use?

Are you able to switch the spindle if required to get the desired chainline?

Looks good.

Offline



#3 2015-11-17 5:27pm

Potato49
Intermediate
From: Tehachapi, CA
Signed up: 2013-06-05
Posts: 318
Bikes: 7
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

The YST Spindle is adjustable left to right and you can use any square taper cranks. To adjust, just loosen the collars and slide either way. i think i used a 128mm spindle. works fine.

Just race!

Offline



#4 2015-11-18 6:45am

lsdbmx
Intermediate
From: Denver
Signed up: 2011-09-28
Posts: 378
Bikes: 5
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

Good info I just about gave up on my build

Black Skyway round tuf pads wanted

People I will not deal with
Timcirello,racegroup09

Offline



#5 2015-11-18 11:18am

Potato49
Intermediate
From: Tehachapi, CA
Signed up: 2013-06-05
Posts: 318
Bikes: 7
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

I can have more cups made. Or you can check your local machine shop. Mine had to re-round my bottom bracket first and pressed them in.

Just race!

Offline



#6 2015-12-12 6:34pm

Bchapy66
Museum Newbie
Signed up: 2015-10-09
Posts: 19
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

This is the same as the mcs mantis mini dimensions?  The lower bearing hole looks like its 27mm.  Is that the outside diameter for the piece he made you?  If so looks like he's got another customer.  However I did notice the bearings that your link goes to has a 35mm OD.  Chappy66

Last edited by Bchapy66 (2016-02-18 2:51pm)

1979 Takara Outlaw pit- 1997 Schwinn 24" Pro stock 3 - 1992 GT Mach 1 - 1988 MCS Mantis Mini (my 8 yr. old daughters race bike) -currently working on a late 1981 redline MX ii

Offline



#7 2015-12-13 4:57am

paulc
Centurion Member
From: PA
Signed up: 2007-12-12
Posts: 249
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

Great work.  I had to find new bearings for a Titan mini years ago.  The ones that fit the Titan mini and the mcs mini mantis are called aircraft torque tube bearings.  1-1/16" OD and 5/8" ID.  You can find them on line

Offline



#8 2015-12-14 10:54am

Potato49
Intermediate
From: Tehachapi, CA
Signed up: 2013-06-05
Posts: 318
Bikes: 7
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

From what i have been told, the Mantis is the same size. I have never seen one in person to check. I posted the bearing# and took a picture of the exact bearing i used.

Just race!

Offline



#9 2016-02-28 4:38am

Bambi
Pro Member
From: Queensland, Australia
Signed up: 2011-04-05
Posts: 137
Website
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

Can you get more made please? I would love 2 sets.
I have titan junior cruiser.

Tusk. In its entirety. Just as Lindsay Buckingham intended it to be.

Offline



#10 2016-02-28 4:39am

Bambi
Pro Member
From: Queensland, Australia
Signed up: 2011-04-05
Posts: 137
Website
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

and a mcs mantis mini

Tusk. In its entirety. Just as Lindsay Buckingham intended it to be.

Offline



#11 2017-02-24 6:21am

Baine76
Intermediate
From: Dallas Texas
Signed up: 2017-01-11
Posts: 475
Bikes: 12
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

The bearings used in the factory titan mini B.B. are MRC brand bearings. The model number is R10FF H401. These can be found on eBay. Can also order from here:
https://m.grainger.com/mobile/product/M … Id=1000241

They can also be found through other bearing suppliers online.

As far as the cups go, stated earlier, you'll have to use your local machine shop to make new ones.

Offline



#12 2017-02-27 10:16am

paulc
Centurion Member
From: PA
Signed up: 2007-12-12
Posts: 249
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

On the titan mini and the mcs mini, the bearings get pressed right into the frame, no cups needed as I remember

Offline



#13 2017-02-28 7:50pm

Baine76
Intermediate
From: Dallas Texas
Signed up: 2017-01-11
Posts: 475
Bikes: 12
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

Curious. My titan came with cups but I see there are some in the museum that look like the bearings are pressed right into the bottom bracket. I wonder what the difference is in the shell that would allow bearings pressed in without cups. Does anyone have close up pics of the non-cup style bb as well as a explanation for the two styles. I'd guess they were just a different design from year to year. Wonder which came first. Questions questions.

Offline



#14 2017-03-02 4:01am

paulc
Centurion Member
From: PA
Signed up: 2007-12-12
Posts: 249
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/10927/00458b8098a3c.jpg

Offline



#15 2017-03-02 4:03am

paulc
Centurion Member
From: PA
Signed up: 2007-12-12
Posts: 249
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/10927/img_602558b80a0689.png
https://s3.amazonaws.com/uploads.bmxmuseum.com/user-images/10927/img_602658b80a0d4f.png

Offline



#16 2017-03-02 4:04am

paulc
Centurion Member
From: PA
Signed up: 2007-12-12
Posts: 249
Offline

Re: Titan Mini, MCS Mantis Bottom Bracket.

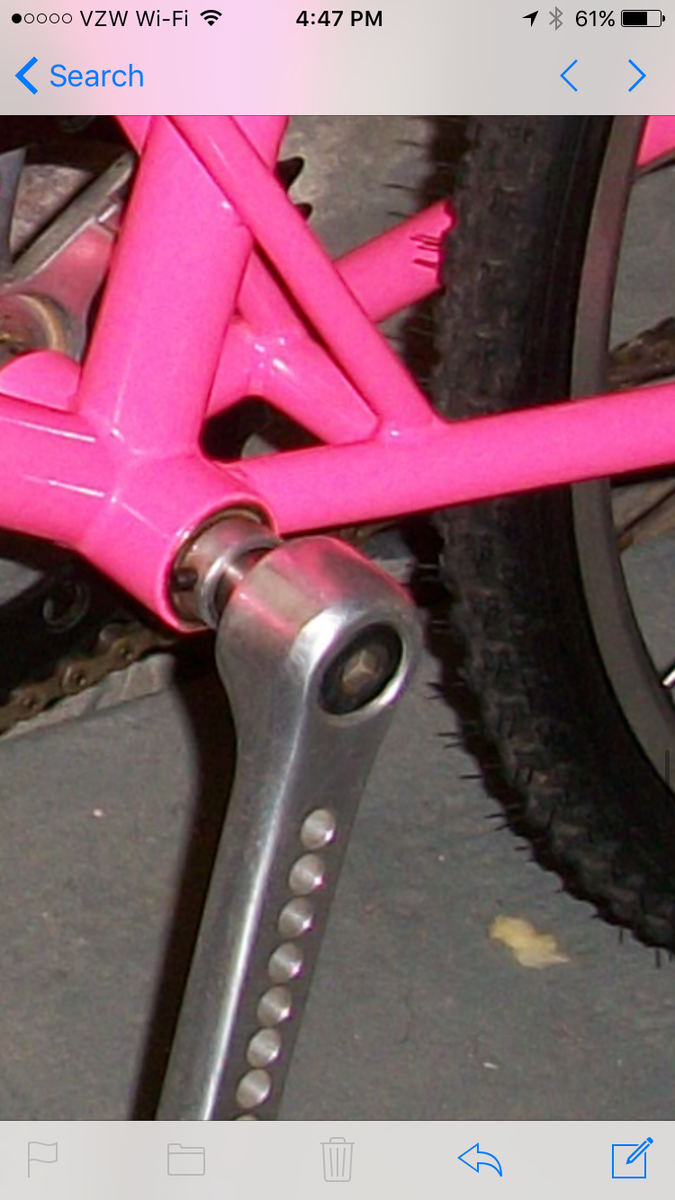

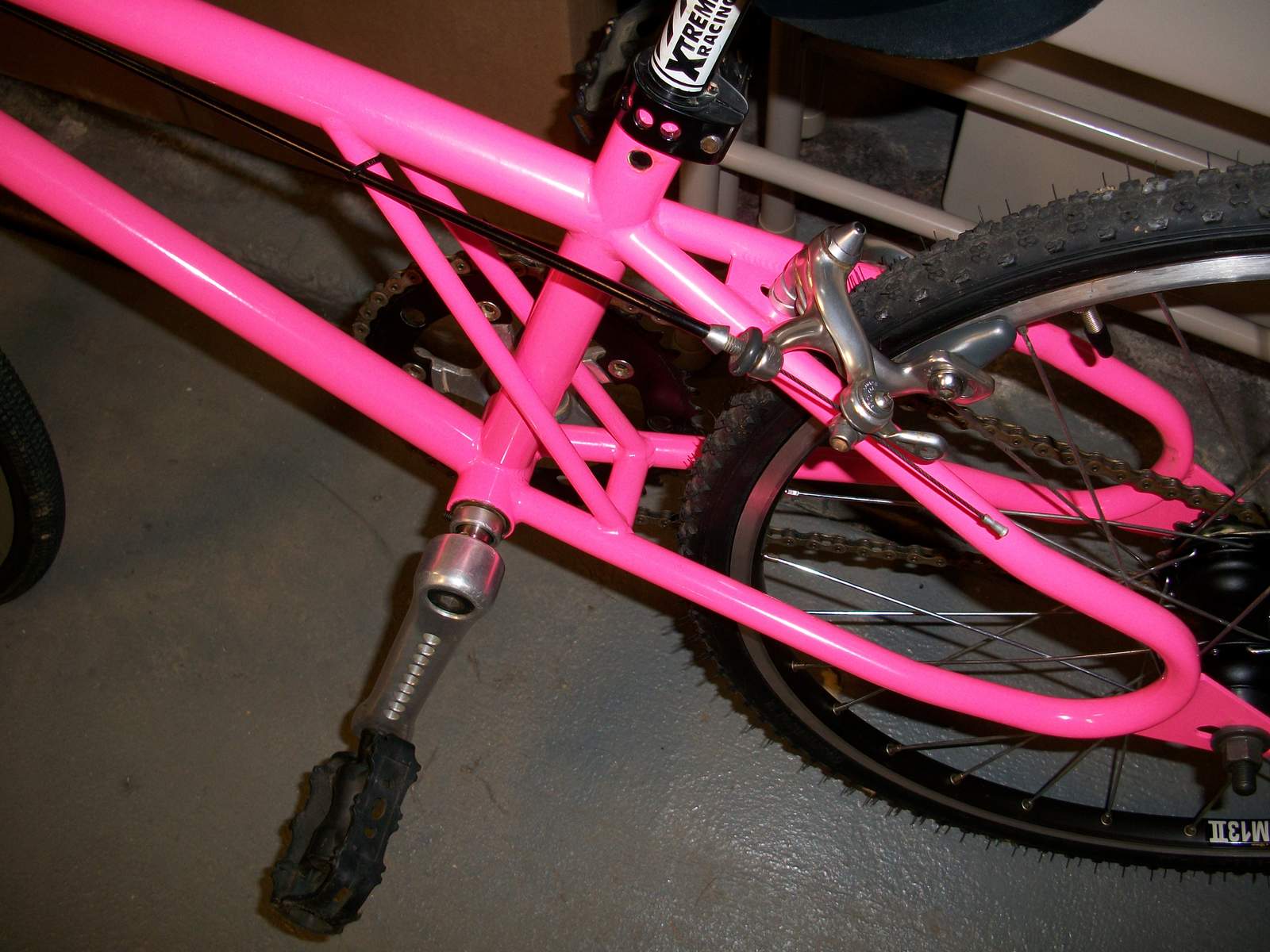

Pics of bearings pressed directly into frame.
