3 piece crank/Euro BB Install steps

#1 2007-10-26 5:45pm

BridgeCity
Guest

3 piece crank/Euro BB Install steps

I’ve noticed the old school crowd can make a pristine old school bike but we struggle with the new school stuff. Here is a quick overview with some logic thrown in….as if you were in the garage with your Pops.

Clean threads well then grease heavy with a good grease (I like walmart Slick 50 Teflon grease)
http://i137.photobucket.com/albums/q211/m5h5m/1.jpg

Parts: not all washers are used. Just use as needed for alignment.  Note the 19mm spacer I had to use for the sprocket (pound in by laying flat on wood surface with a nylon spacer between hammer and surface)
http://i137.photobucket.com/albums/q211/m5h5m/2.jpg

Hold up the threaded bearings and spacer against the Bottom Bracket to confirm you have the correct spacer length.  The spacer holds the bearings in place so the spacer length is crucial.
http://i137.photobucket.com/albums/q211/m5h5m/3.jpg

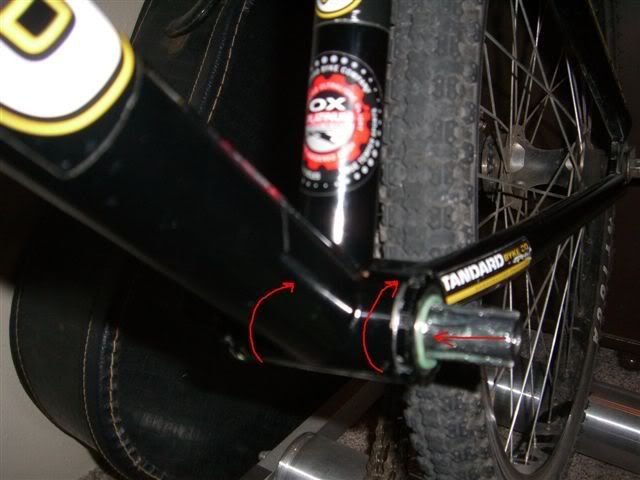

Heavy grease and careful threading. The bearings are Left/Right specific and will both tighten in the same direction.
---->>>>To loosen remember that you turn the bearings the same direction as the tire spins.<<<<----
I didn’t have a spanner so I wrapped the bearings in an old towel and gently tightened with pliers. If you slip you’ll scratch the alloy.  Be sure the spacer in the middle is free to move as you tighten the bearings, it will try to wedge sideways.  The shaft should slip through but may take a little coaxing especially if brand new.
http://i137.photobucket.com/albums/q211/m5h5m/4.jpg

Pull the drive arm into place by tightening the outer bolt. Tighten the sprocket bolt onto arm.  You do this first because you logically know the arm has to fit flush to the shaft.
http://i137.photobucket.com/albums/q211/m5h5m/5.jpg

Put the drive side on and check chain alignment, sprocket rub on chain stays and distance of arm to the frame.  This is where you have to decide how thick a spacer you need between the drive arm and the bearing. No right answer, just good judgment.
http://i137.photobucket.com/albums/q211/m5h5m/6.jpg

Check alignment for the non-drive arm. The larger sloped spacer is necessary against the bearing and you need the shaft to be slightly shorter than the inner surface of the arm so you have room to tighten. [If not enough spacers, the arm will be loose when you tighten the arm bolt clear down] add spacers until you like the spacing compared to the drive arm
http://i137.photobucket.com/albums/q211/m5h5m/7.jpg
http://i137.photobucket.com/albums/q211/m5h5m/8.jpg

Proper tightening technique! This is why you see old flights with cracked arms. Do this right!  Snug the outer bolt so the arm is in place, back it off, tighten the 2 pinch bolts as you would a stem, notice that the bolts are small so don’t use gorilla force or they’ll strip.  Lastly, tighten the outer bolt so everything is tight and locked in place.
http://i137.photobucket.com/albums/q211/m5h5m/9.jpg
http://i137.photobucket.com/albums/q211/m5h5m/10.jpg

Double check your alignments and fix spacing as needed with your pile of misc. thickness spacers
http://i137.photobucket.com/albums/q211/m5h5m/11.jpg

Remember lots of grease on everything or these euro bottom brackets will get creaky.
Ride for about an hour then retighten, especially if this is new Hardware.
