Shimano DX pedal restoration and spindle exchange..

Well i am sure some of you are not gonna like the stripping of the DX's but i hunted for along time for a decent red and or chrome/polished set so i had to buy the gold and do it myself..

I ended up buying a set of  gold 1/2 Shimano DX pedals but i needed them 9/16 so I used the 9/16 spindle out of the Shimano PD-MX15http://i76.photobucket.com/albums/j10/saber417/bmx3030.jpg

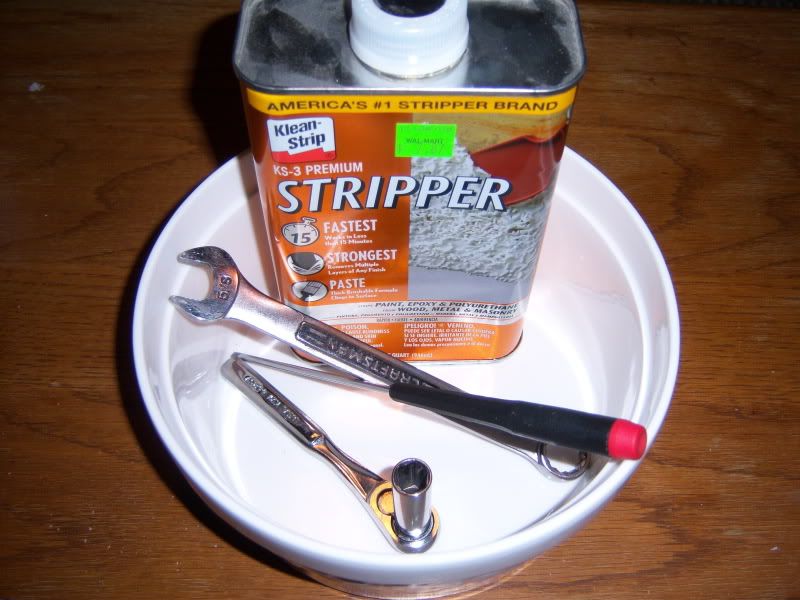

Tools needed 5/8 wrench, 7/16 and 5/8 socket and small flat head screw driver.And tooth brush/rags and a bowl. for stripping the ano i use Klean strip premium stripper .This stuff works instantly defiantly use gloves thick gloves the latex ones WILL !! disintegrate trust me..Also some grease for the bearings.
http://i76.photobucket.com/albums/j10/saber417/bmx3031.jpg

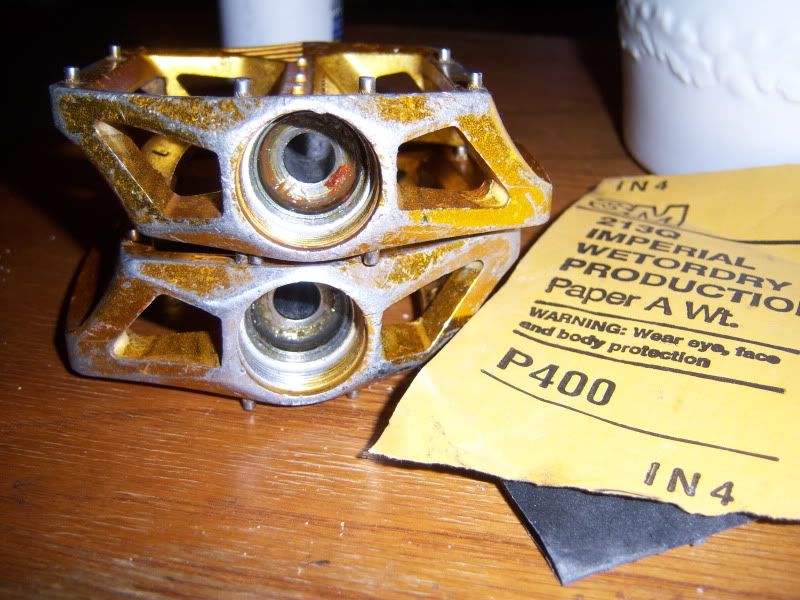

Use the small flat head to remove the DX end caps mine where trashed so i just poked a hole through them and popped them out. Once you remove the cap use the 5/8 wrench on the arm end and the 7/16 socket on the end cap end once that is out there is a washer and another nut you can just use the 5/8 socket to remove that one .Make sure you do this over a towel, bowl or box for the bearings. They will go everywhere.
http://i76.photobucket.com/albums/j10/saber417/bmx3033.jpg
If the ends are rough you could sand them down with fine grit most of the DX pedals are them self's a little rough i have only seen a couple of smooth surface ones but more rough ones so don't do them to smooth if you want a good look.
http://i76.photobucket.com/albums/j10/saber417/bmx3032.jpg

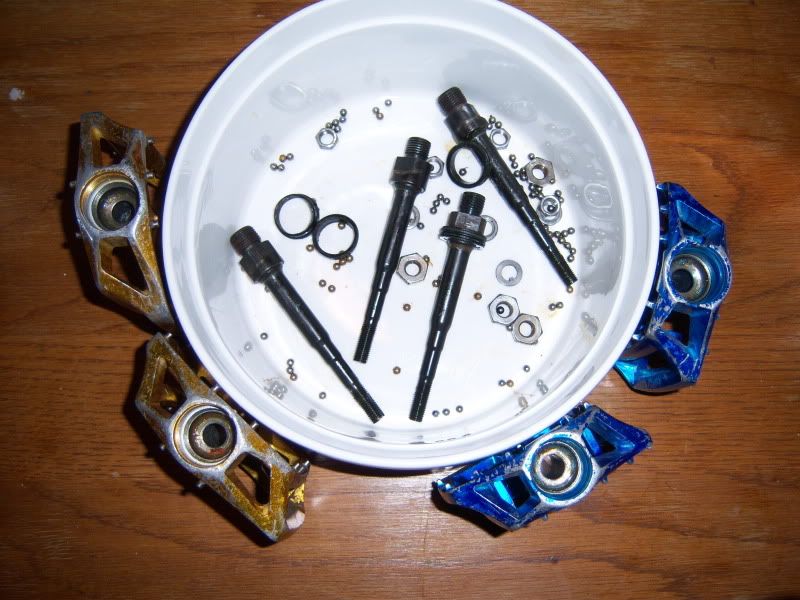

Once everything is out and off .You will have to take the dust caps that where on the 1/2 DX spindles off and put them on the 9/16. I clean up the pedals with soap and water it makes it easier for the stripper to work. Use a tooth brush to spread the stripper around and in all the nooks and crannies let sit for like two minutes if that work it around you will know when it is all off. Don't let it sit for to long it wont ruin the pedals it will just dull them alot in spots .It wont ruin them unless you keep them in the stripper for a long time.
http://i76.photobucket.com/albums/j10/saber417/bmx3034.jpg

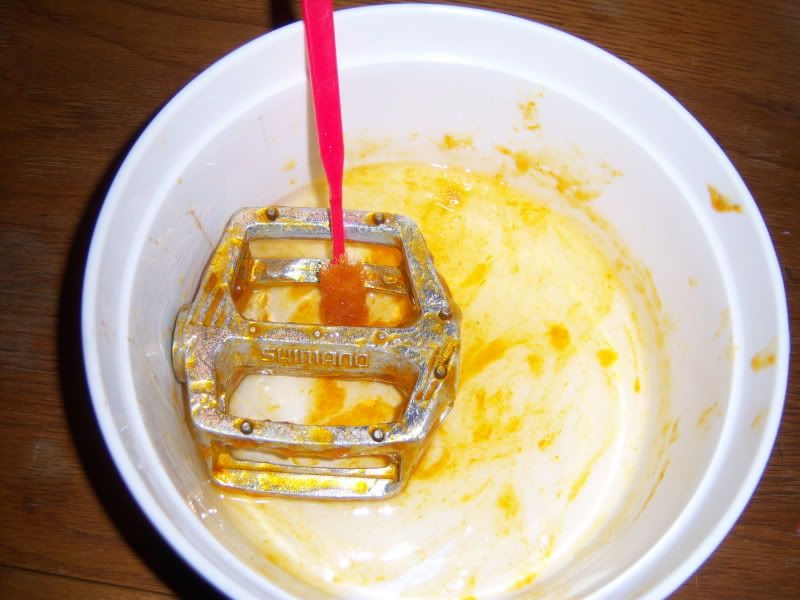

Next you should clean all the parts/spindle, bearings, nuts bolts and dust washers very well so there is no dirt or anything on them that will make it easier for putting them back together so you wont have to take them apart when you discover dirt in them. After bath in stripper i wipe up and clean the pedals again with soap and water .Dry them off and if you want polish them up. I only did a minor polish on these use some polish and a dremel that would work best or by hand.
http://i76.photobucket.com/albums/j10/saber417/bmx3035.jpg

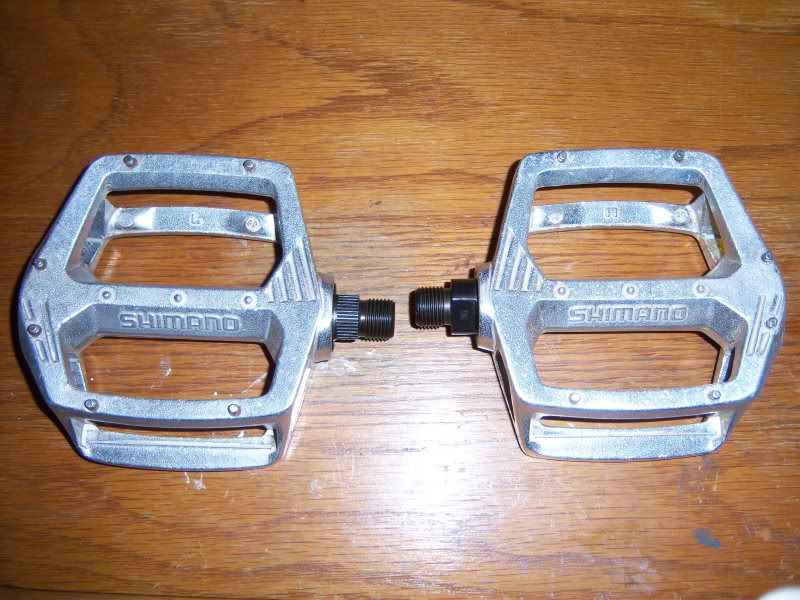

Put them back together with the (9/16 spindles) Left spindle with left pedal and Right spindle with Right pedal. Grease up the bearings which there are 11 bearings in each end dont use to much grease they wont spin well totally packed. I also use thread lock on the out side 7/16 nut only. tighten up adjust so they spin well and you are done .There is a guy on the boards that make repro DX end caps big_smile
http://i76.photobucket.com/albums/j10/saber417/bmx3037.jpg

Maybe useful for some maybe not for others thought i would share .Thanks..big_smile

Last edited by slogun417 (2009-03-30 7:11pm)


Sin, sin, sin, you're all sinners. Your all goin' to a painful, everlasting, fiery hell

Offline



#2 2009-03-30 8:09pm

PATTERSON RIDER
Centurion Member
Signed up: 2008-11-07
Posts: 142
Bikes: 1
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Nice job!

I recently took mine apart to clean & regrease. I haven't put my new caps on yet because I want to take them apart again and spray mine with some metalscast to give them a fresh look.I believe there are 22 bearings a pedal but looking at your pics I don't recall the black rings. Are they a rubber seal?

PR


I DON'T HAVE A SIGNATURE!

Offline



#3 2009-03-30 8:34pm

slogun417
Pro Member
From: Manchester, NH
Signed up: 2008-05-26
Posts: 1020
Bikes: 6
Offline

Re: Shimano DX pedal restoration and spindle exchange..

PATTERSON RIDER wrote:

Nice job!

I recently took mine apart to clean & regrease. I haven't put my new caps on yet because I want to take them apart again and spray mine with some metalscast to give them a fresh look.I believe there are 22 bearings a pedal but looking at your pics I don't recall the black rings. Are they a rubber seal?

PR

Thanks .Yes there are 22 bearings in each pedal. I said 11 in each end. And the seal is a softer plastic seal with two sleaves in the bushing. This would only be on the DX pedal. It is at the end of the spindle. I should take a pic for ya.smile


Sin, sin, sin, you're all sinners. Your all goin' to a painful, everlasting, fiery hell

Offline



#4 2009-03-31 12:58am

choad666
Hooked On Phone Sex
From: Columbus, NE
Signed up: 2007-12-22
Posts: 604
Bikes: 10
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Here's a thread I made on OS-BMX about doing DX's. I did pretty much the same thing you did (except switch spindles) but I also put in there how to paint them without painting the pins. It might be worth a looksy!

http://www.os-bmx.com/forums/index.php?showtopic=38407


Gotta love the 80's and 90's, when a simple smile could get you laid. That same smile now gets me pepper sprayed and a karate chop to the throat.

Offline



#5 2009-06-11 4:36am

Thomy96
Member
From: Melbourne, oz
Signed up: 2009-05-26
Posts: 68
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Hey I need to get a pair of dx pedals for a build will I need 9/16 or 1/2? here is a picture of the cranks they need to fit.

http://s639.photobucket.com/albums/uu11 … cranks.jpg


Looking for a pair of blue snake belly 2's

Offline



#6 2009-06-11 4:52am

MiniZ
Museum Addict
From: SLC, UT
Signed up: 2006-05-20
Posts: 3205
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Thomy96 wrote:

Hey I need to get a pair of dx pedals for a build will I need 9/16 or 1/2? here is a picture of the cranks they need to fit.

http://s639.photobucket.com/albums/uu11 … cranks.jpg

You will need 1/2" spindles.


Old School Baptized, Mid School Convert
The sooner we leave, the sooner we can get back and not have sex.

Offline



#7 2009-06-11 5:58am

caleb_k31
This member is now deceased.
From: Milwaukee, WI
Signed up: 2006-04-07
Posts: 6884
Bikes: 15
Offline

Re: Shimano DX pedal restoration and spindle exchange..

i have done several sets, i filed them down to bring back the lines.  i sent mine to Chip for powder.
started with them looking like the top one,  bottom one is after a i took a file to it.
http://i144.photobucket.com/albums/r183/caleb_K21/bike%20parts%20referance/JAD125.jpg
after powder, with the repro end caps
http://i144.photobucket.com/albums/r183/caleb_K21/bike%20parts%20referance/JAD131.jpg
http://i144.photobucket.com/albums/r183/caleb_K21/bike%20parts%20referance/JAD132.jpg

Last edited by caleb_k21 (2009-06-11 5:59am)


WILL NOT DEAL WITH LIST 619-bmx, Boyd, NickWG19, quadsticher, Djrothus, cgeorge715, bob70, sharkbite, Luke Sears ebay name bmxbrigade.

GT fork stander spring install - http://bmxmuseum.com/forums/viewtopic.php?id=426565
PFT restoration thread - http://bmxmuseum.com/forums/viewtopic.php?id=399950&p=1
epoch headset, freestyle vs. race - http://bmxmuseum.com/forums/viewtopic.p … 7#p4233077

All the hub/hoop measuring info you will need along with spoke calculation info http://bmxmuseum.com/forums/viewtopic.p … 9#p5435389

Offline



#8 2009-06-11 8:11am

slogun417
Pro Member
From: Manchester, NH
Signed up: 2008-05-26
Posts: 1020
Bikes: 6
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Hey caleb those turned out awesome . Good job. cool the filing was a good route..


Sin, sin, sin, you're all sinners. Your all goin' to a painful, everlasting, fiery hell

Offline



#9 2009-06-11 12:21pm

caleb_k31
This member is now deceased.
From: Milwaukee, WI
Signed up: 2006-04-07
Posts: 6884
Bikes: 15
Offline

Re: Shimano DX pedal restoration and spindle exchange..

the red pedals are NOS.
http://i144.photobucket.com/albums/r183/caleb_K21/bike%20parts%20referance/JAD130.jpg

i should have made a tutorial on these with more detaied pics on the filing process.   i used 3 different files.  the most important part is start with pedals that dont have real bad gouges or ground down and try to get a set with all the pins intact.  ive done 3 of these sets in black and they almost look new..  its not exactly cheap to do this,  30-60 for used pedals that are good enuff to use,  the cheaper ones will be 1/2" so you will need to do a spindle swap like slogun shows above and getting the pdmx 9/16" is gonna cost you 20 unless you get lucky..

then send them to Chip@C4 you in for another 40-50 with all the shipping cost,  add the repro end caps for $22 (witch i dont think are available anymore)   so you can easily spend 100-150 doing these but end result is well worth it..   i have 3 sets of these restored in black and all are show worthy without a doubt..   all my pedals are on bikes sorry non for sale.

Last edited by caleb_k21 (2009-06-11 12:21pm)


WILL NOT DEAL WITH LIST 619-bmx, Boyd, NickWG19, quadsticher, Djrothus, cgeorge715, bob70, sharkbite, Luke Sears ebay name bmxbrigade.

GT fork stander spring install - http://bmxmuseum.com/forums/viewtopic.php?id=426565
PFT restoration thread - http://bmxmuseum.com/forums/viewtopic.php?id=399950&p=1
epoch headset, freestyle vs. race - http://bmxmuseum.com/forums/viewtopic.p … 7#p4233077

All the hub/hoop measuring info you will need along with spoke calculation info http://bmxmuseum.com/forums/viewtopic.p … 9#p5435389

Offline



#10 2009-06-11 2:22pm

jjs340
Museum Addict
From: Ohio
Signed up: 2009-04-13
Posts: 1120
Bikes: 9
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Man, I've got the exact project going on right now. I even have that exact brand of stripper. Does anybody know where I can get a set of those repro end caps???


Shut up and listen to PERRONT. He knows better. He told me so. Don't be a pussy. Just ask him.

Offline



#11 2009-06-11 3:25pm

itsdug
Pro MemberMike Hunt
From: Tennessee, USA
Signed up: 2009-03-09
Posts: 20133
For Sale: 1
Offline

Re: Shimano DX pedal restoration and spindle exchange..

jjs340 wrote:

Does anybody know where I can get a set of those repro end caps???


BMX IS SERIOUS BUSINESS! Just ask Brian Hays.

Offline



#12 2009-06-11 7:02pm

caleb_k31
This member is now deceased.
From: Milwaukee, WI
Signed up: 2006-04-07
Posts: 6884
Bikes: 15
Offline

Re: Shimano DX pedal restoration and spindle exchange..

sory the person that made the end caps has vanished, i would doubt you will see him anytime soon..    i know 2 people bought alot of them mabye search ebay or put up a want ad and someone will have extras..


WILL NOT DEAL WITH LIST 619-bmx, Boyd, NickWG19, quadsticher, Djrothus, cgeorge715, bob70, sharkbite, Luke Sears ebay name bmxbrigade.

GT fork stander spring install - http://bmxmuseum.com/forums/viewtopic.php?id=426565
PFT restoration thread - http://bmxmuseum.com/forums/viewtopic.php?id=399950&p=1
epoch headset, freestyle vs. race - http://bmxmuseum.com/forums/viewtopic.p … 7#p4233077

All the hub/hoop measuring info you will need along with spoke calculation info http://bmxmuseum.com/forums/viewtopic.p … 9#p5435389

Offline



#13 2009-06-11 7:31pm

TxFireman
Museum Addict
Signed up: 2008-08-20
Posts: 1020
Bikes: 5
Offline

Re: Shimano DX pedal restoration and spindle exchange..

caleb_k21 wrote:

sory the person that made the end caps has vanished, i would doubt you will see him anytime soon..    i know 2 people bought alot of them mabye search ebay or put up a want ad and someone will have extras..

Is this who your reffering to?

http://bmxmuseum.com/forums/viewtopic.php?id=116817&p=1


"Danger is my business" ~ Jeff Spicoli - Fast Times at Ridgemont High
~1978 Mongoose Motomag~1979 Mongoose motomag~1983 Kuwahara KZ-83 Laser Lite~1981 Mongoose II~

Offline



#14 2009-06-12 5:57am

caleb_k31
This member is now deceased.
From: Milwaukee, WI
Signed up: 2006-04-07
Posts: 6884
Bikes: 15
Offline

Re: Shimano DX pedal restoration and spindle exchange..

^^^ yes that is him,  good luck..


WILL NOT DEAL WITH LIST 619-bmx, Boyd, NickWG19, quadsticher, Djrothus, cgeorge715, bob70, sharkbite, Luke Sears ebay name bmxbrigade.

GT fork stander spring install - http://bmxmuseum.com/forums/viewtopic.php?id=426565
PFT restoration thread - http://bmxmuseum.com/forums/viewtopic.php?id=399950&p=1
epoch headset, freestyle vs. race - http://bmxmuseum.com/forums/viewtopic.p … 7#p4233077

All the hub/hoop measuring info you will need along with spoke calculation info http://bmxmuseum.com/forums/viewtopic.p … 9#p5435389

Offline



#15 2009-06-12 8:44am

Draw
Pro MemberRev on the Redline
From: Alabama
Signed up: 2008-10-09
Posts: 10510
Bikes: 2
For Sale: 3
Offline

Re: Shimano DX pedal restoration and spindle exchange..

contact rakas17
he just contacted me about a week ago
and said he is working on another batch.


Light, Strong, Cheap ... Pick two

Offline



#16 2009-10-24 7:45pm

pr200
Bringin The Thunda From Down Unda
From: Sydney, Australia
Signed up: 2008-06-30
Posts: 1765
Bikes: 6
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Great thread, really informative, i am just about to start the process!

B


Just put a deposit down on a brand new Porsche and mentioned it on Facebook. I said, "I can't wait for the new 911 to arrive!" Next thing I know 4,000 f**king Muslims have added me as a friend!

Offline



#17 2009-10-24 8:05pm

polanco
Pro Member
From: Santo Domingo, DR
Signed up: 2007-02-08
Posts: 5614
Offline

Re: Shimano DX pedal restoration and spindle exchange..

cool,joe 6187 has some caps,contact him,I got some two weeks ago!

Offline



#18 2009-12-17 6:18pm

jrrodriguez
Member
From: Austin, TX
Signed up: 2008-09-08
Posts: 27
Bikes: 2
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Does anybody know where I can purchase the softer plastic seal with two sleaves for the Shimano DX Pedals?  I recently acquired a Set and one pedal is missing the dust seal.

Thanks

Offline



#19 2011-11-13 6:34pm

jdtoldschool
Everybody Wants Some!!
From: Glen Allen, VA
Signed up: 2011-07-17
Posts: 267
Bikes: 3
Offline

Re: Shimano DX pedal restoration and spindle exchange..

*bump*

Great Tip and Tutorial!!!!! I didn't strip them, but I did switch the spindles and the instructions are simple and easy!

I've been looking for some 9/16" blue Shimano DX for a while now but couldn't find any so I picked up some 1/2" ones from Hunt in nice survivor condition and then picked up some black 9/16" PD-MX15's from NerdBMX and just finished swapping the spindles. I was even able to salvage the end caps on the DX's! Not so fortunate for the PD-MX15's... they didn't quite make it.


Words to live by:
"Dream as if you'll live forever, live as if you'll die today." - James Dean
"Girls are like pianos. When they're not upright, they're grand." - Benny Hill
"I got a FEVER... and the only prescription is MORE COWBELL!" - THE Bruce Dickenson
"Holy CRAP" - Frank Barone
"Do not taunt Happy-Fun Ball"

Offline



#20 2011-12-10 7:35pm

flythefriendlyskyway
Pro Member
From: Valencia, CA
Signed up: 2009-10-09
Posts: 1947
Bikes: 17
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Marked!  Wow, that's amazing!


I NEED: 1986-88 Chrome ELF Pro Frame/Fork
I NEED: 24" Blue UKAI Speedline hoop or wheel--single or pair
I NEED: White Vinyl REDLINE Top Tube Pad--old, snap style in very good condition

Offline



#21 2011-12-10 7:50pm

01blacks4
For Sale Restricted
From: Chandler, AZ
Signed up: 2010-06-21
Posts: 621
Bikes: 2
Offline

Re: Shimano DX pedal restoration and spindle exchange..

i paid for some repop caps a year ago.....   still nothing   roll

Offline



#22 2012-03-07 10:58am

flythefriendlyskyway
Pro Member
From: Valencia, CA
Signed up: 2009-10-09
Posts: 1947
Bikes: 17
Offline

Re: Shimano DX pedal restoration and spindle exchange..

jdtoldschool wrote:

*bump*
I was even able to salvage the end caps on the DX's!

Any advice on pulling that off?


I NEED: 1986-88 Chrome ELF Pro Frame/Fork
I NEED: 24" Blue UKAI Speedline hoop or wheel--single or pair
I NEED: White Vinyl REDLINE Top Tube Pad--old, snap style in very good condition

Offline



#23 2012-03-07 11:45am

JAF
Intermediate
From: NY
Signed up: 2011-02-09
Posts: 305
Bikes: 5
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Great thread guys. In addition to knowing how to salvage the end caps, can the pegs be replaced on these? They look knurled as if pressed into the pedal. Is that true? And is there any supply of replacements if so?

Last edited by JAF (2012-03-07 11:46am)


Wanted (in any condition):  SE Racing --> Anything pre Fuji  |  Comp II type tread fat/skinny tire set in black |   Premier Super BMX helmets

The weapon of America's deadliest mass killer, Timmy McVeigh, was fertilizer. Maybe we should ban bullshit, but that would shut down Washington, DC and all five major TV networks.
~Greg Palast

Offline



#24 2012-05-25 4:00am

luckytee71
Member
From: brisbane australia
Signed up: 2011-07-05
Posts: 48
Website
Offline

Re: Shimano DX pedal restoration and spindle exchange..

Joe6187 is the man for the end caps, bought 4 sets, always quick post and good communicatioN

Offline



#25 2012-05-25 5:35am

caleb_k31
This member is now deceased.
From: Milwaukee, WI
Signed up: 2006-04-07
Posts: 6884
Bikes: 15
Offline

Re: Shimano DX pedal restoration and spindle exchange..

the last set i did also involved removal of some pins, thats tricky!  unfortunately i have no pics of that.


WILL NOT DEAL WITH LIST 619-bmx, Boyd, NickWG19, quadsticher, Djrothus, cgeorge715, bob70, sharkbite, Luke Sears ebay name bmxbrigade.

GT fork stander spring install - http://bmxmuseum.com/forums/viewtopic.php?id=426565
PFT restoration thread - http://bmxmuseum.com/forums/viewtopic.php?id=399950&p=1
epoch headset, freestyle vs. race - http://bmxmuseum.com/forums/viewtopic.p … 7#p4233077

All the hub/hoop measuring info you will need along with spoke calculation info http://bmxmuseum.com/forums/viewtopic.p … 9#p5435389
